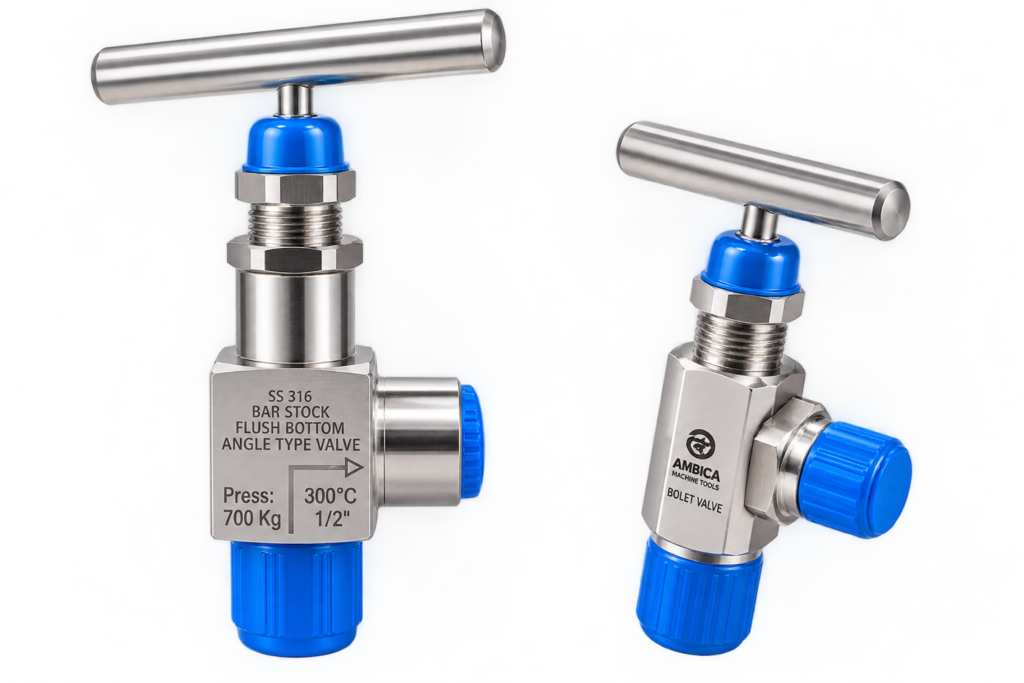

Angle Type Needle Valve Manufacturer in India & Worldwide
Angle Type Needle Valves are designed for precise flow control and reliable isolation in high-pressure industrial piping and instrumentation systems. The angle-type valve body changes the flow direction by 90°, making it suitable for compact piping layouts and space-restricted installations.
Available in stainless steel and alloy steel material grades, these needle valves are offered in square and round body designs with NPT, BSP, socket weld and compression end connections for different industrial requirements.
Angle Type Needle Valve Technical Specifications
|
Specification
|
Details
|
| Valve Type |
Angle Type Needle Valve
|
| Valve Body |
Angle Type – Changes Flow Direction by 90°
|
| Size |
1/4″, 3/8″, 1/2″, 3/4″, 1″
|
| Body Design |
Square Body and Round Body
|
| Material |
SS 304, SS 316, SS 316L, Alloy Steel
|
| End Connection |
NPT, BSP, Socket Weld, Compression
|
| Temperature |
Maximum Up to 300°C
|
| Application |
Flow Control, Isolation, Instrumentation, Process Piping and High Pressure Systems
|
What is Angle Type Needle Valve?
Angle Type Needle Valves are precision-engineered valves designed for controlled flow regulation and isolation in industrial fluid and instrumentation systems. Their unique angle body configuration changes the flow direction by 90°, making them suitable for piping arrangements where a change in direction is required.
These valves are available in square and round body designs and can be manufactured using SS 304, SS 316, SS 316L and alloy steel materials to suit different operating conditions.
With NPT, BSP, socket weld and compression connections, Angle Type Needle Valves provide flexible installation options for industrial piping and instrumentation systems.
Key Features of Quick Release Coupling
90° Flow Change
The angle body changes the flow direction by 90°, keeping the piping layout compact and reducing the need for extra elbows.
Precise Flow Control
The needle stem allows very fine control and isolation of flow.
Square & Round Body Options
Both square body and round body designs are available, so you can choose the right body for your installation.
Multiple Materials
Available in SS 304, SS 316, SS 316L and Alloy Steel for different media and operating conditions.
Versatile End Connections
Available with NPT, BSP, Socket Weld and Compression connections, in sizes from 1/4″ to 1″.
High Temperature Service
Built to operate at temperatures up to 300°C.
Leading Industrial Pump Manufacturer
Get in touch with the Leaders
+91 93282 89287
Applications of Angle Type Needle Valve
Angle Type Needle Valves are suitable for applications requiring precise flow adjustment, isolation and a 90° change in flow direction within industrial piping systems.
Process Instrumentation
Precise flow adjustment and isolation in instrument lines, gauges and transmitters.
Pressure Control Systems
Fine throttling and reliable shut-off to keep system pressure stable and under control.
Oil & Gas Applications
Flow control and isolation in high pressure lines, wellheads and process piping.
Chemical Processing
Dependable control of aggressive media in chemical plants, using suitable stainless steel and alloy materials.
Hydraulic Systems
Accurate flow adjustment and isolation in hydraulic circuits, power packs and test setups.
Power Plants
Isolation and flow control in steam, water and instrumentation lines, with a compact 90° layout.
Why Choose Us for Angle Type Needle Valve
20+ Years of Industry Experience
With two decades of experience, we understand the critical nature of high-pressure safety and manufacture valves that perform reliably in demanding conditions.
Global Export
We export to multiple countries with proper documentation and secure packaging.
ISO-Certified Quality
Our manufacturing process follows strict quality protocols to ensure every valve is defect-free.
Fast Shipping
We work efficiently to meet your delivery timelines in India or for export projects.
Custom Builds
We provide different materials and end connections as per project specifications.
Fair Prices
As a direct manufacturer in India, we offer quality products at fair market prices.
Countries We Serve
Qatar
Kuwait
UAE
Singapore
Libya
Tanzania
Oman
Nepal
Uzbekistan
Indonesia
We are achived
Our Certificates
Need we say more about the authorization of our brand?
CE Certificate AODD Pump
CE Certificate Barrel Pump
GST Certificate
IEC Certificate
ISO 9001:2015
NSIC Certificate
TM Certificate
Udyam Registration Certificate
ZED Bronze
Our Trusted Client
What our Clients Say
We installed Ambica's Angle Type Needle Valves in our instrumentation lines, and the 90° body saved us a lot of space. The flow adjustment is very smooth, and the SS 316 build looks solid. Highly recommended supplier.
Rahul Mehta
Vadodara
We needed both square body and round body valves for different panels, and Ambica supplied everything in one order. The finishing is neat, and every valve was leak-free during our pressure test. Their team also helped us choose the right end connections.
Anil Deshmukh
Pune
We use these valves for flow control in our chemical processing unit. The SS 316L material handles our media very well, and we have had no issues even after long running hours. Delivery was on time.
Vikram Joshi
Ankleshwar
Ambica manufactured Angle Type Needle Valves with socket weld ends for our refinery project. The dimensions matched our drawings exactly, and the quality was consistent across the entire batch. Very professional technical support.
Ahmed Al-Mansoori
Abu Dhabi, UAE
The needle stem gives very fine control over the flow in our hydraulic test setup. The valves are tough and perform well at high temperatures. We have now made Ambica our regular supplier.
Suresh Nair
Chennai
We ordered alloy steel angle needle valves with compression ends for an export project. Packing was secure, documents were complete, and the shipment arrived without any damage. Excellent service from start to finish.
Faisal Al-Harbi
Kuwait
Frequently Asked Questions
An Angle Type Needle Valve is a high pressure valve with a needle-shaped stem that gives precise flow control. Its body changes the flow direction by 90°, so it works as both a flow regulator and an elbow in the piping.
In a Straight Type valve, the inlet and outlet are in line. In an Angle Type valve, the outlet is at 90° to the inlet. This helps save space and reduces the need for extra elbow fittings.
We offer both Square Body and Round Body designs. You can choose the one that suits your panel layout and installation space.
Angle Type Needle Valves are available in SS 304, SS 316, SS 316L and Alloy Steel. We can also supply other materials as per your requirement.
We offer NPT, BSP, Socket Weld and Compression end connections in sizes of 1/4″, 3/8″, 1/2″, 3/4″ and 1″.
These valves can operate at temperatures up to 300°C. The exact limit depends on the material and packing used, so please share your operating conditions and we will suggest the right option.
